PanaScope LED Luminaires

A leader in High Mast and Canopy Ultrabright LED Luminaires for long range and large surface lighting applications.  At the same time making a significant contribution to reducing carbon footprints through very low energy consumption, minimal light pollution, and long life.

About High Mast LED Lighting

Lighting technologies have significantly advanced over the last few years. This was brought on by environmental pressures of energy cost and light pollution. LED Lights or Luminaires were subject to overheating, so products available today are limited to less than 300 watts. PanaScope LED Luminaires have met these challenges and more!

Direct Light Beam! LED luminaires direct light in a cone shape to the surface minimizing the amount of secondary light that contributes to light pollution. PanaScope LED Luminaires uses Inside Reflector Prism and High Ratio Lens that is Toughened Glass and offers Beam Angles of 12.5°, 15°. 20°, 30°.

Mobirise
Mobirise

Protection From Overheating! LED Luminaires use Circuit On Board (COB) modules to control and power the Light Emitting Diodes (LED). These COB's do heat up during operation, to estimated temperatures greater than 170°C, resulting in possible permanent damage to the light unit and may cause burns or fire. To keep the LED's cool during operation a method of dissipating the heat is required by using a fan or heatsink.  Some LED Luminaire manufacturers use a method of turning off the LED when it reaches a certain temperature to allow for a cool down of the COB. PanaScope LED Luminaires uses a Uni-Body Heatsink that provides a benefit of continuous operation and cool surface within operating temperatures of -40°C~55°C.

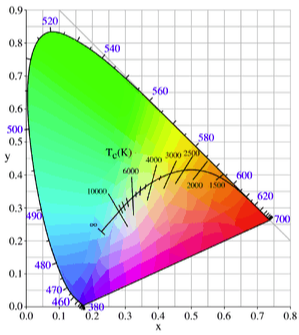

Color Temperature! A characteristic of visible light that emits from a light source and is expressed in Kelvin (K). Daylight would fit in the range of 5500K~6500K. As looking directly into the Sun can be harmful to a persons eye and physical health, looking directly into a light source may have the same effect, depending on the Color Temperature emitted from the light source. A light source that emits more than 6000K contains a significant amount of blue light that can be harmful to the eye retna. On the other side of the light spectrum of 5500K or less has shown to emit more yellow and orange which is much more comfortable to the eyes and human health.
PanaScope LED Luminaires offer two choices in Color Temperature:
* 5500K - A normal white lamp that is used where detail of the lighted surface is required;
* 3000K - A warm white filtered lamp that is very easy on the eyes and used where fog conditions are present.

Mobirise

Energy Efficiency! LED Luminaires are considered more energy efficient then other light sources such as incandesent, CFL, HID, Sodium Vapor, etc.  This is due to the design and function of LED in that it takes less Watts to light a specific area.  Depending on which lighting source LED is compared to, the reduction can amount up to 90%.

Alternative Power Sources! Since the LED's use DC current to actually power the LED modules, the Luminaires can be operated with Battery power sources.  This allows for use of alternate power sources, such as, Solar, Wind, and Geothermal.

PanaScope LED Luminaires offer DC drivers to power their LED products that use customer provided 24V Batteries.

Features and Safety

  • LIFESPAN - With the high quality Engineered design and manufacturing PanaScope LED Luminaires can efficiently operate for +50,000 hours, and comes with a 2 year replacement warranty on any PanaScope LED Luminaire that fails during normal operation.
  • EASY INSTALLATION AND MOUNTING - PanaScope LED Luminaires comes with a sturdy bracket and wall mounting plate allowing angle adjustments of between 0° ~ 180°.
  • INTERNATIONAL PROTECTION RATING - PanaScope LED Luminaires are IP65 rated which means that they are Dust Tight and can withstand Water Jets from a 6.3mm nozzle against the enclosure from any direction.
  • IMPACT PROTECTION RATING - Is the degrees of protection provided by enclosures for electrical equipment against external mechanical impacts in accordance with IEC 62262:2002 and IEC 60068-2-75:1997.  PanaScope LED Luminaires are IK08 rated which means the enclosure can withstand 5 joules of impact.
  • SAFETY CERTIFICATIONS - Mean Well and Inventronics A/C Drivers have their own safety certifications.  Follow the link as provided in the specifications below for more detail.
Mobirise

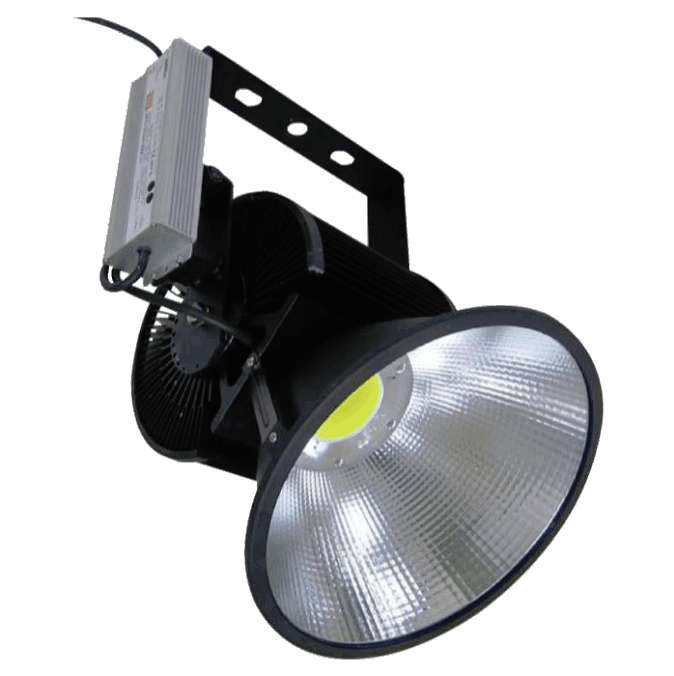

320 Watt LED Luminaire

Mobirise

1000 Watt LED Luminaire

Specifications

320Watt Normal White Series

Model No.320NW-WB320NW-NB320NW-UB
Rated Power320 Watts
Lumen Efficacy120 lm/w110 lm/w110 lm/w
CCT / CRI5500k/>70
Beam Angle30°20°15°

Effective Beam Distance

1,800ft(550m)1,300ft(400m)985ft(300m)
Light SourceEPISTAR 45mil Flip Chip COB
Power SourceA/C or D/C
- A/C DriverMean Well HLG-320H-48A
* Volt/Amps120V~240V/2.6A~1.3A
- D/C DriverUPK DC300W48-A
* Volt/Amps24V Battery/13.3Ah
DimensionsØ11.8in(30cm)Wide 14in(35.5cm)High 20.8in(53cm)
Weight18.2lb(8.3kg)

320 Watt Warm White Series

Model No.320WW-WB320WW-NB 320WW-UB
Rated Power320 watts
Lumen Efficacy110 lm/w100 lm/w100 lm/w
CCT / CRI3000k/>70
Beam Angle30°20°15°

Effective Beam
Distance

1,800ft(550m)1,300ft(400m)985ft(300m)
Light SourceEPISTAR 45mil Flip Chip COB
Power SourceA/C or D/C
- A/C DriverMean Well HLG-320H-48A


* Volt/Amps120V~240V/2.6A~1.3A
- D/C DriverUPK DC300W48-A
* Volt/Amps24V Battery/13.3Ah
DimensionsØ11.8in(30cm)Wide 14in(35.5cm)High 20.8in(53cm)
Weight18.2lb(8.3kg)

1000 Watt Ultra Bright Series

Model No. 1000NW-NB 1000WW-NB 1000NW-UB 1000WW-UB
Rated Power1,000watt1,000watt1,000watt1,000watt
Lumen Efficacy110 lm/w100 lm/w100 lm/w90 lm/w
CCT / CRI5500k/>703000k/>705500k/>703000k/>70
Beam Angle20°20°12.5°12.5°
Effective Beam Distance6,562ft(2,000m)6,562ft(2,000m)6,562ft(2,000m)6,562ft(2,000m)
Light SourceEPISTAR 42S54P COBEPISTAR 42S54P COBEPISTAR 42S54P COBEPISTAR 42S54P COB
Power SourceA/C OnlyA/C OnlyA/C OnlyA/C Only
- A/C DriverInventronics
EUD-600S560DV*2
Inventronics
EUD-600S560DV*2
Inventronics
EUD-600S560DV*2
Inventronics
EUD-600S560DV*2
* Volt/Amps120V~240V/8.3A~4.2A120V~240V/8.3A~4.2A120V~240V/8.3A~4.2A120V~240V/8.3A~4.2A
DimensionsØ18.9in(48cm)Wide 18.7in(47.5cm)
High 23.2in(59cm)
Weight37.5lb(17kg)37.5lb(17kg)37.5lb(17kg)37.5lb(17kg)

APPLICATIONS

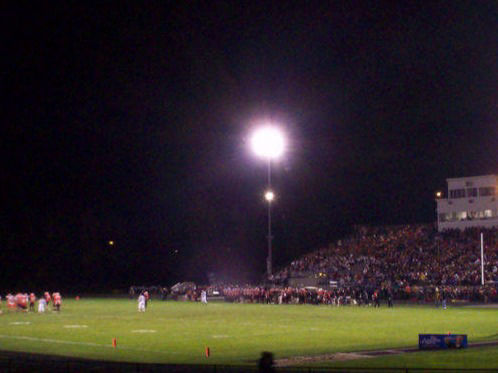

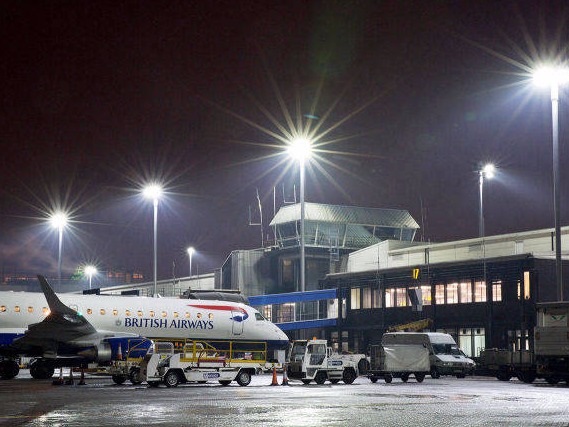

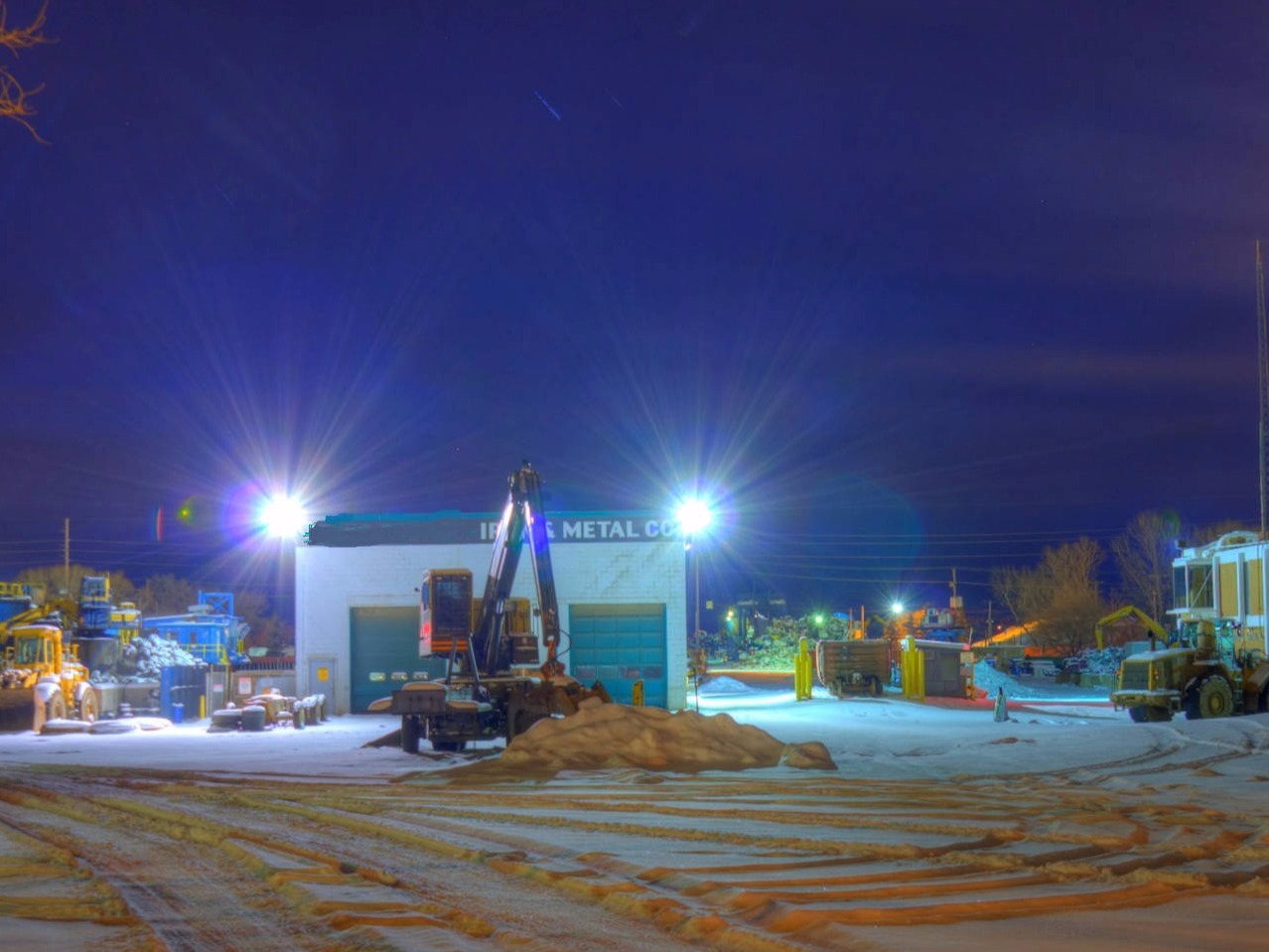

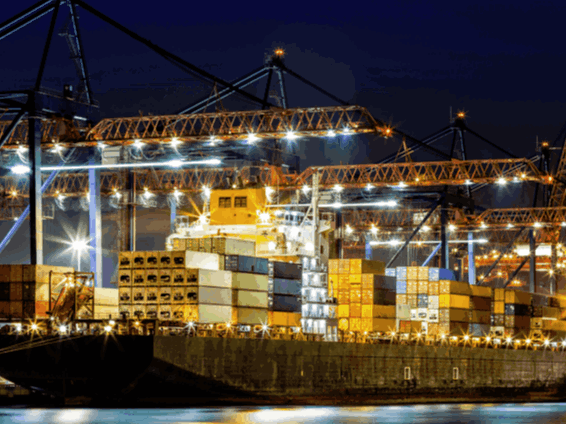

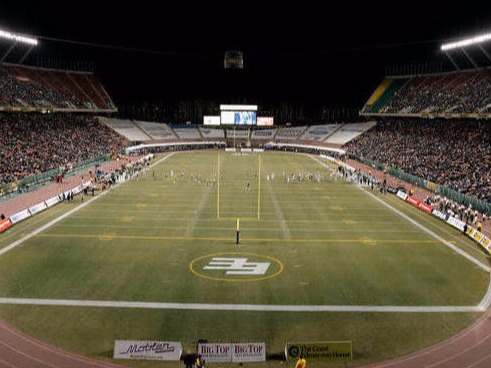

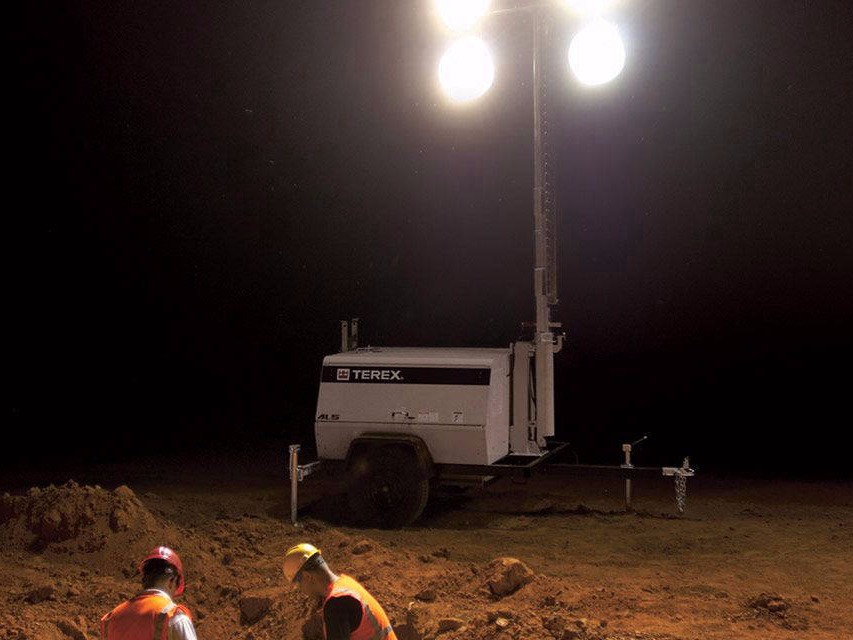

PanaScope LED Luminaires are best suited for outdoor areas that allow for mounting on high masts, buildings, or canopies.  They are also well suited for warehouse and distribution centres where ceilings are 30ft or higher.  The following images provide examples of possible end uses that LED lighting would be an improvement to the safety and security of both the employee and employer.  For personal assistance in determining your lighting requirements see the Contacts area below.

Contact PanaSource

For more information on the PanaScope LED Luminaires or to arrange a Consultation on your LED lighting requirements.
